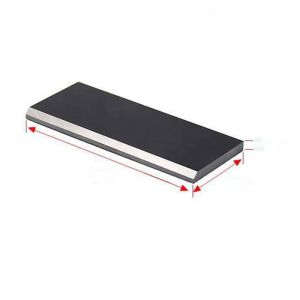

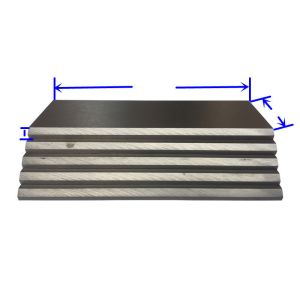

    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100

    Ask Lasest Price
    Brand Name : LFYGY
    Model Number : EK60
    Certification : ISO9001
    Price : $0.10 - $5.00/pieces
    • Product Details
    • Company Profile

    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100

    Product Details
    Introduction :
    1.Vacuum pump carbon vane(or graphite blade, graphite vane) is self lubricating graphite vane , strong resistance to wear; 2.Vacuum pump carbon vane is with high temperature resistance, no need using vacuum pump oil and water as medium, energy saving 3. Vacuum pump carbon plate is more environmental protection, no pollution, because self lubricating carbon plate had mild carbon particles will discharge from the vent 4. Efficient, more suitable for high speed regulated vacuum pump

    IF YOU WANT TO RESELL THIS PRODUCTS , PLEASE CONTACT US ,WE CAN GIVE YOU THE BEST PRICE TO HELP YOU TO GET MARKET !!!
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100

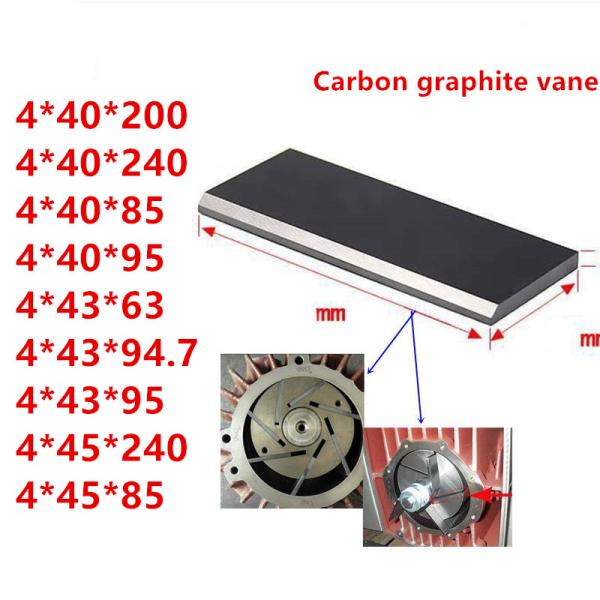

    Vacuum pump carbon vane


    1. Material Grade: EK60 Material

    2. Good wear resistance

    3.High temp resistance

    4.High Efficent

    5.Long service time
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100

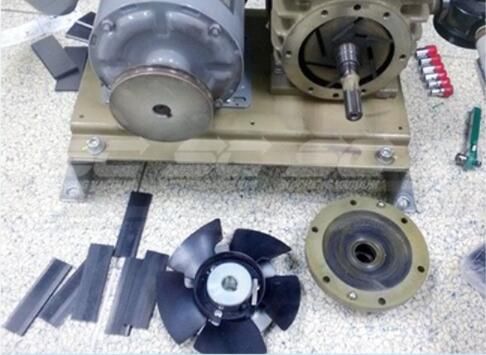

    How to exchange the Graphite vane :
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    Step1:
    Before installing and replacing the carbon vane, need clean the wall of the air pump cylinder without any redidue
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    Step 2:
    Check whether the cylinder wall is worn (Note: encountering bad carbon vanes will damage the clyinder wall )

    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    Step 3:
    When install the carbon vane , pay attention not to install the chamfering direction in the opposite direction. Otherwise the carbon vane will be broken easily.
    Below is our carbon vanes sizes and the related vacuum pump models chart :
    Accept customized size , contact us if you could not find the size you need ,or you don't know how to measure the vane size.
    Graphite vane Item No.
    Size code
    Pcs/set
    (length x widht x thickness ) MM
    Pump Models
    90138700005
    WN124-219
    5
    33
    16
    3
    DT/VT 4.3/4.4
    90138800005
    WN124-220
    5
    41
    18.5
    3
    DT/VT 4.6/4.8
    90132700007
    WN124-003
    7
    55
    27
    3
    DT/VT 3.10/4.10
    90134700007
    WN124-120
    7
    63
    35.5
    4
    DT/VT 3.16/4.16
    90134900007
    WN124-162
    7
    63
    43
    4
    DT/VT 3.25 4.25
    90135200007
    WN124-160
    7
    95
    43
    4
    DT/VT 3.40 4.40
    90132900004
    WN124-033
    4
    135
    39
    4
    KVT/KVT 2.60
    90133000004
    WN124-034
    4
    170
    39
    4
    KDT/KVT2.80/3.60/3.80
    90133000007
    WN124-034
    7
    170
    39
    4
    DVT 3.60/3.80
    90133300004
    WN124-032
    4
    250
    39
    4
    KDT/KVT 2.100/3.100
    90133300007
    WN124-032
    7
    250
    39
    4
    DVT3.100
    90133400004
    WN124-031
    4
    240
    48
    4
    KVT/KVT 2.140/3.140
    90133340007
    WN124-031
    7
    240
    48
    4
    DVT 2.140/3.140
    90136701005
    WN124-196
    5
    355
    65
    5
    VTLF 250/360
    Pump vance size table
    Pump model
    (length x widht x thickness ) MM
    Pcs/set
    VLT15/DLT-15
    55*39*4
    6
    VGD10
    60*18*3
    6
    VLT10
    60*31*4
    6
    VLT25
    85*39*4
    6
    TR41DV/DLT40/KLT40
    85*45*4
    7
    VLT40/TR40/KTA40
    84*47*4
    6
    VLT60
    95*48*4
    6
    TR61D
    95*50*4
    6
    TR80/TR81
    95*60*6
    7
    KTA80/DVT80/VTA80
    130*52*5
    4, 6, 7
    VTA100/VTA60/KTA50
    160*37*4
    6
    VTA80
    185*52*5
    6
    CLFG41V
    190*24*4
    6
    TR80DV
    195*58*6
    7
    CLFT61D
    200*35*4
    8
    KTA100
    215*52*5
    6
    CLFT101
    230*40*5
    6
    CLFT141DV
    230*45*6
    6
    KAT/KTA/DTA-140/ZYB140F
    260*52*5
    4, 6
    Packing and Delivery
    Adequate stock, perfect packaging. Support sea, land, air, express!!
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    Company Description
    Henan Zion New Material Co., Ltd. is an enterprise specializing in the production and sales of graphite products and new industrial materials. The main products are: graphite rods, graphite crucibles, various graphite molds, graphite plates, graphite rods, high-purity graphite, high temp furnace parts,etc. We have advanced graphite processing equipment and superb production technology, with CNC milling machines, CNC lathes, large sawing machines, surface grinders and so on. Various difficult graphite products can be processed according to customer requirements!
    Welcome to visit us !!
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    High Temp Resistance EK60 Carbon Vanes Vacuum Pump Blades for Gardner Denver VTA 100
    FAQ
    1.When can i get the price?
    We usually quote within 24 hours after getting your detailed requirements,like size,
    quantity etc. .If it is an urgent order, you can call us directly.

    2. Do you provide samples?
    Yes, samples are available for you to check our quality.
    Samples delivery time will be about 3 days.

    3.What about the lead time for mass product?
    The lead time is based on the quantity,about 3-5days.

    4.What is your terms of delivery?
    We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you.
    Besides that, we can also shipping by Air and Express.
